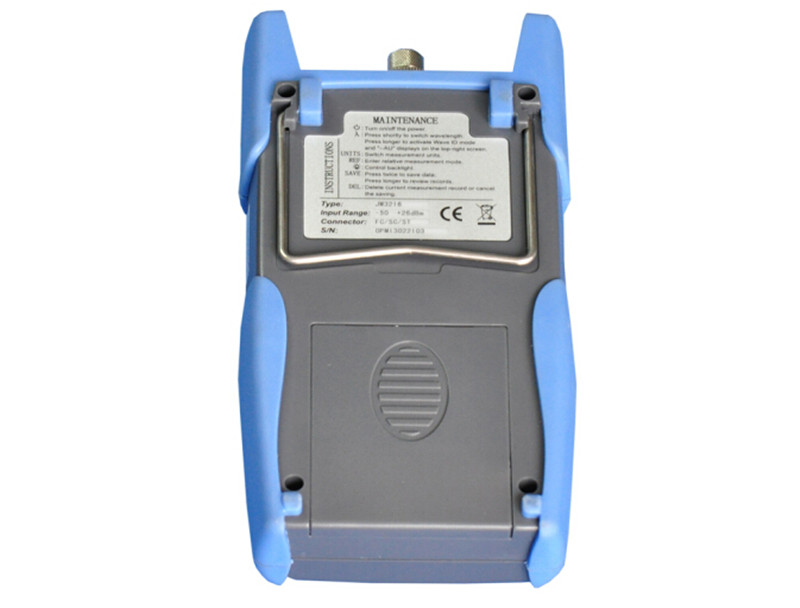

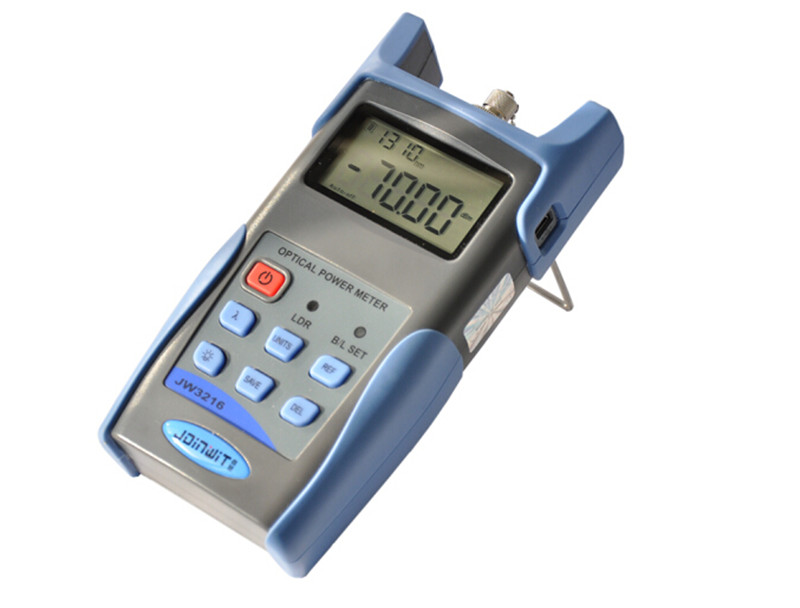

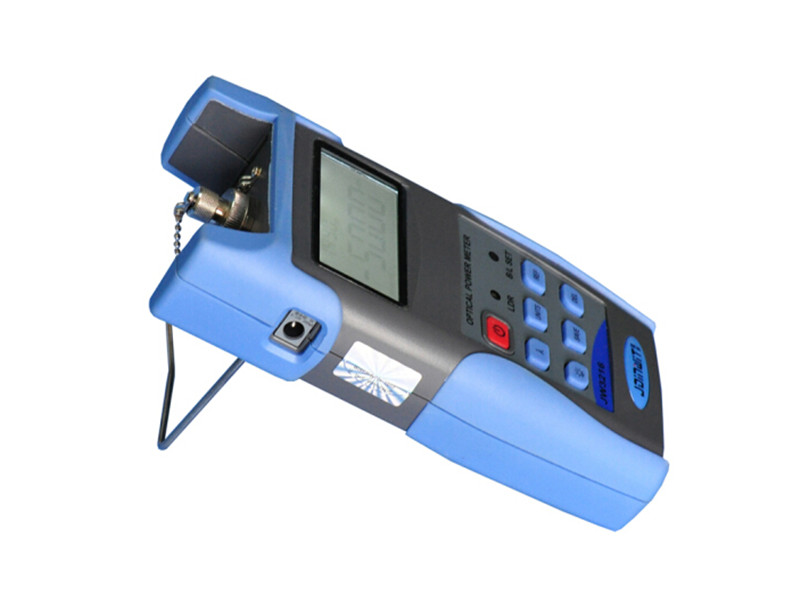

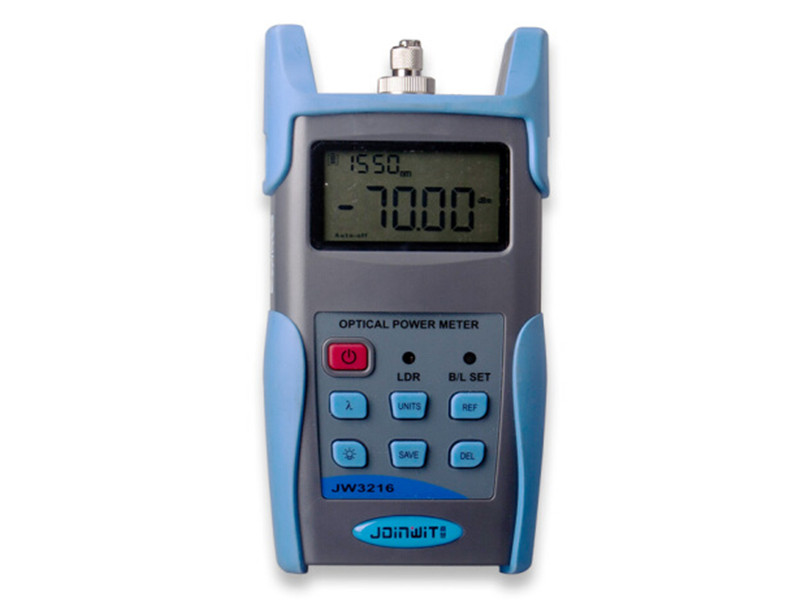

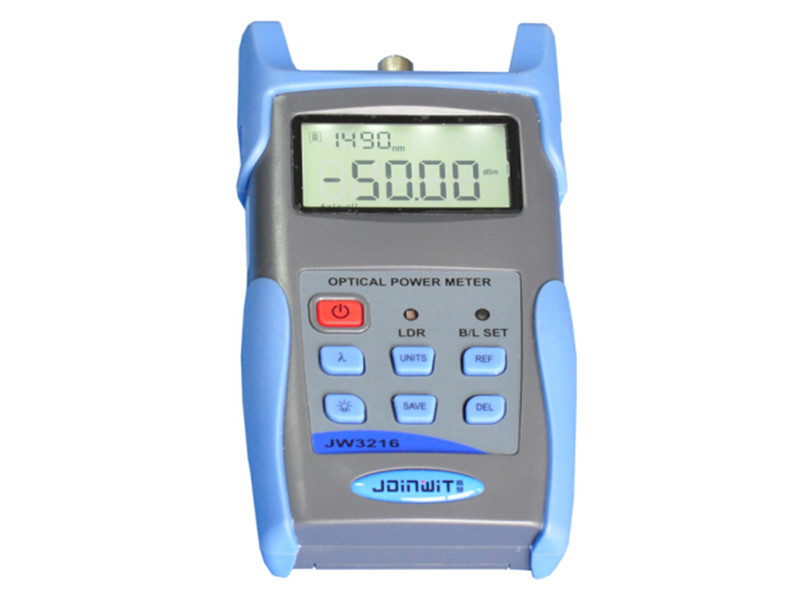

3216 Handheld Optical Power Meter is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with 3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the 3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the 3216 features good appearance, good touch feeling and considerate humanity design.
Features
* Wave ID—Automatic wavelength identification and switching (when used with 3116 handheld light source)
* Frequency ID/Tone detection---Automatic frequency identification
*Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
* Data storage function, up to 1000 test records
* USB communication port for saved testing records download
* Reference power level can be set up and stored
* User self calibration function
* Auto-off function can be activated or deactivated.
* AA alkaline and AC adapter for power supply
* Low battery indication
Specifications
| Model | 3216A | 3216C |
| Calibrated（nm）wavelength | 850, 1300,1310,1490,1550,1625 | |
| Detector type | InGaAs | |
| Measurement Range（dBm） | -70～+6 | -50～+26 |
| Uncertainty (dB) | ±0.15（3.5%） | |
| linearity (dB) | ±0.02 | |
| Display resolution(dB) | 0.01 | |
| Frequency ID（Hz） | 270，330，1K，2K | |
| Wave ID（nm） | 1310，1490，1550，1625 | |
| Date storage capacity | 1000 | |
| Communication Port | USB | |
| Optical Connector type | FC,SC,ST interchangeable | |
| Alkaline battery | 3*AA，1.5V | |
| Power Supply Adaptor(V) | 8.4 | |
| Battery Operating time (h) | 200 | |
| Operation Temperature(℃) | -10～+60 | |
| Storage Temperature(℃) | -25～+70 | |
| Outline size（mm）/weight | 180*90*45(250g) | |
Standard Packages
| MODEL | INCLUDES |
| All 3216 Models | 3216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
