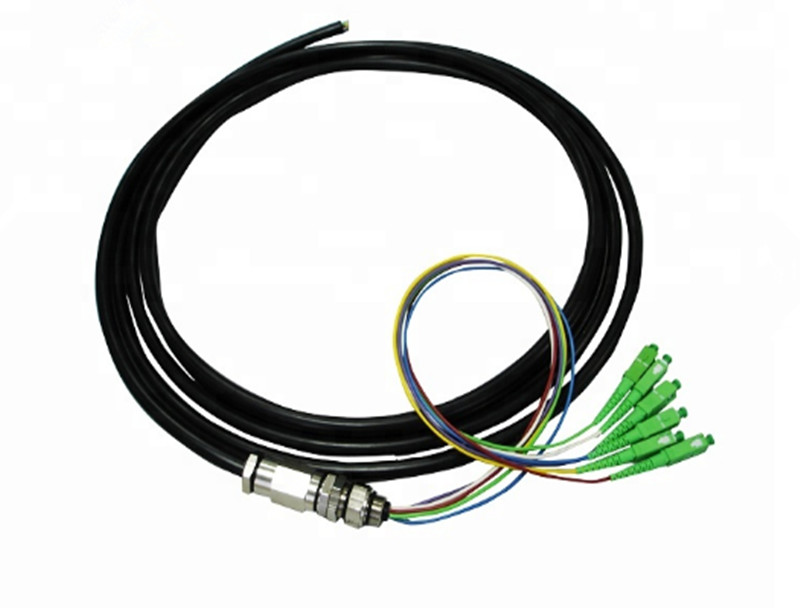

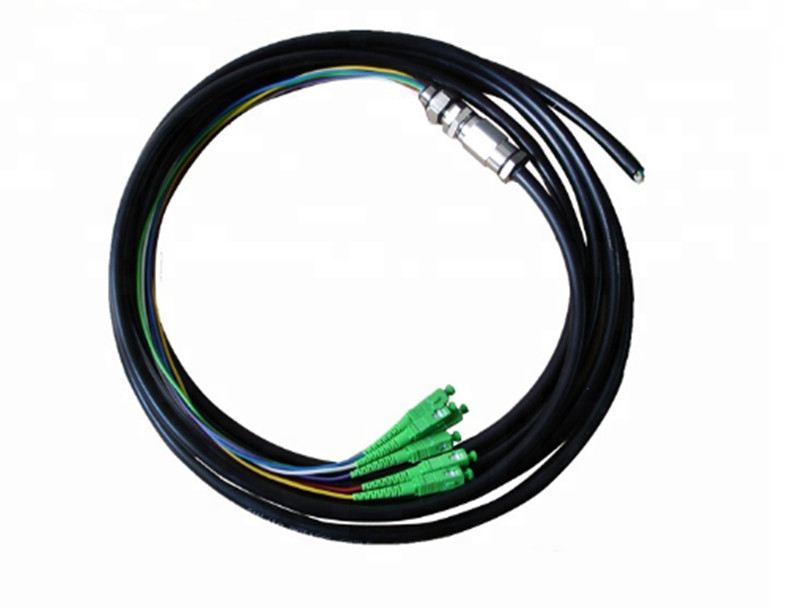

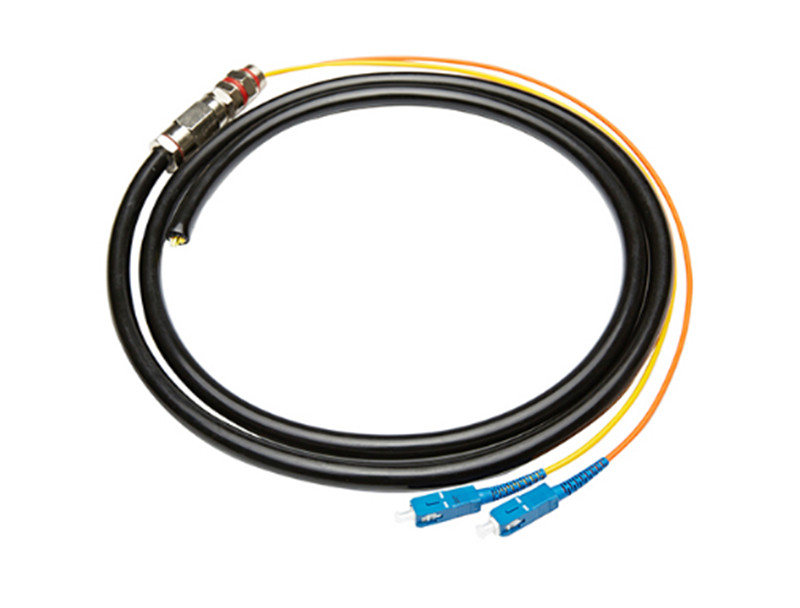

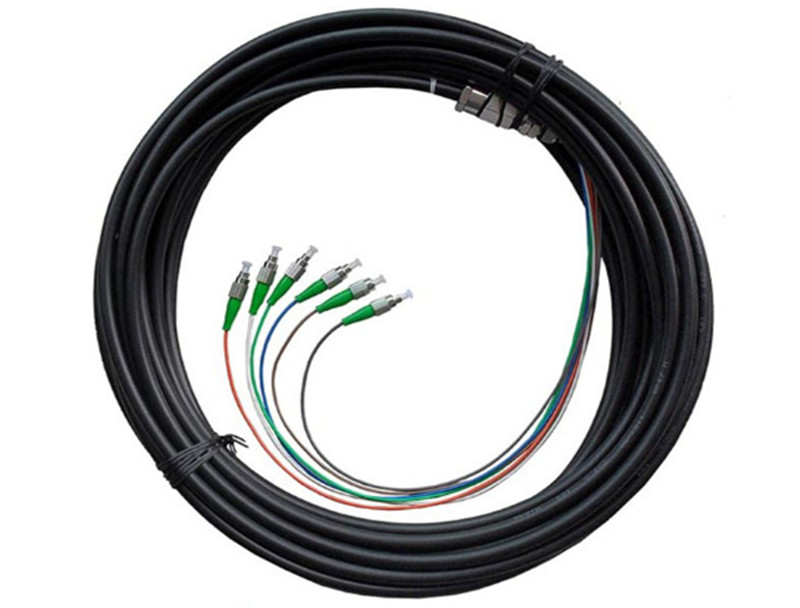

Product Name : Fiber Optic Waterproof Pigtail
Product Code : SNT-WFPT
Applications:
• Long Distance Optical Communication System
• FTTP
• Telecommunication Network
• CATV Network
• Local Area Network
• Active device termination
• Data system network
• FTTH CATV Optic fiber waterproof pigtail
• water proof cables includes 4c, 6c,8c; SM, MM,ST,SC,LC,DIN,MTRJ/D4/MU/E2000, Polishing
Features:
• The number of the core is customized
• Easily mounted and high reliability
• Standard 5/8-24 aluminum entry fitting is sealed with epoxy to protect against water penetration and provides>100IBS of cable pull-outer jacket.
• 2mm subunits guarantee maximum clearance inside node and amplifier housings
• Waterproof, suitable for adverse outdoor environment
• Compliant with: IEC, JIS, Telcordia
• Customer length
• Minimum loss
Specifications:
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.30dB typical ≤0.40dB maximum | ≤0.25dB ≤0.40dB Maximum |
| Return Loss | ≥50.00dB(PC) ≥65.00dB(APC) | |
| Durability | ≤0.20dB typical change,1000matings | |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C |
| Ferrule Specification | 125.3+1/-0μm, concentricity: ≤1.0μm125.3+1/-0μm, concentricity: ≤0.5μm APC | 127+3/-0μm, concentricity: ≤4.0μm |
Ordering Options:
| Connector type | Boot Size(Cable) | Boot Color | Fiber Type | Cable Number | Application | Length |
| SC | 2.4mm | Customized | 9/125μm | 4 F.O | PC | Customized |
| FC | 50/125μm | 6 F.O | APC | |||
| LC | 62.5/125μm | |||||
| ST | 50/125μm OM3 |
REQUEST A QUOTE
