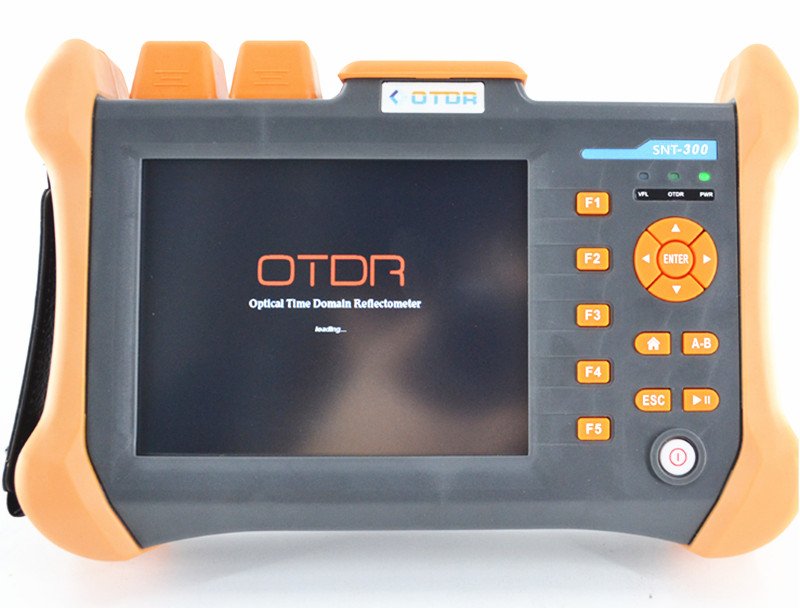

OTDR


Features:

1.5.6-Inch outdoor-enhanced touchscreen,7.4V/4.4AhLithium battery

2.Event Dead zone as lower as 1.5meter

3.Combined multi dynamic range and wavelengths

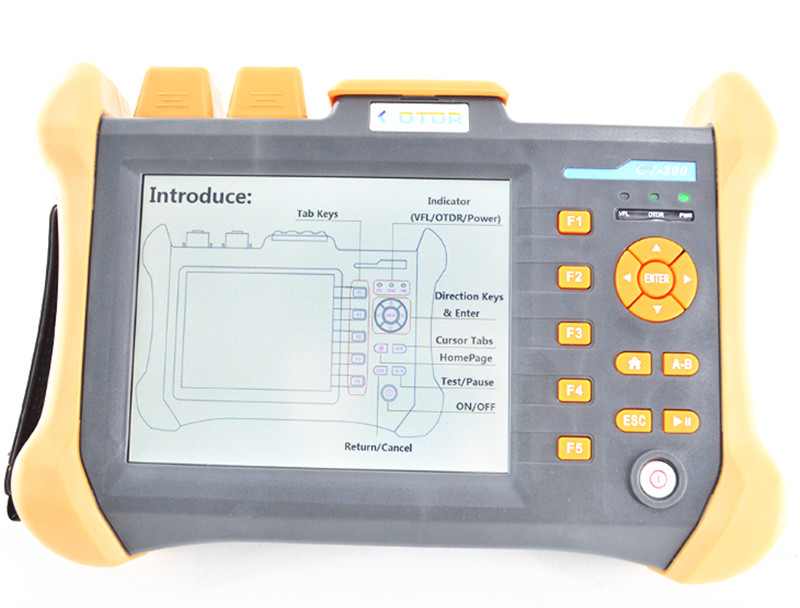

4.Muti measurement mode, support Touching LCD and pressing keys

5.Warning function could prevent OTDR module from being damaged by optical signal in fiber.

6.Realtime measuring function, convenient to monitor the splicing process

7.Integrated 10mw Visual Fault Locator

8.Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input ,

9.Integrated with 8GB internal memory, more than 80,000 groups curve storage

10.PC remote access and control function is available , which support the printing work of the measurement report

Specifications:

Pulse Width	(SM 1310/1550NM)5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs :(MM 850/1300NM) 5ns,10ns,20ns,50ns,100ns,500ns,1us
Distance Range	(SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km,(MM 850/1300NM):100m,400m,1.3km,2.5km,5km,10km,20km,40km,80km
Sampling Resolution	Minimum 0.05m
Sampling Point	128,000
Linearity	≤0.05dB/dB
Loss Threshold	0.01dB
Loss Resolution	0.001dB
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10 +sampling resolution)
Data Storage	20000 groups of curve
VFL	10mW,CW/2Hz

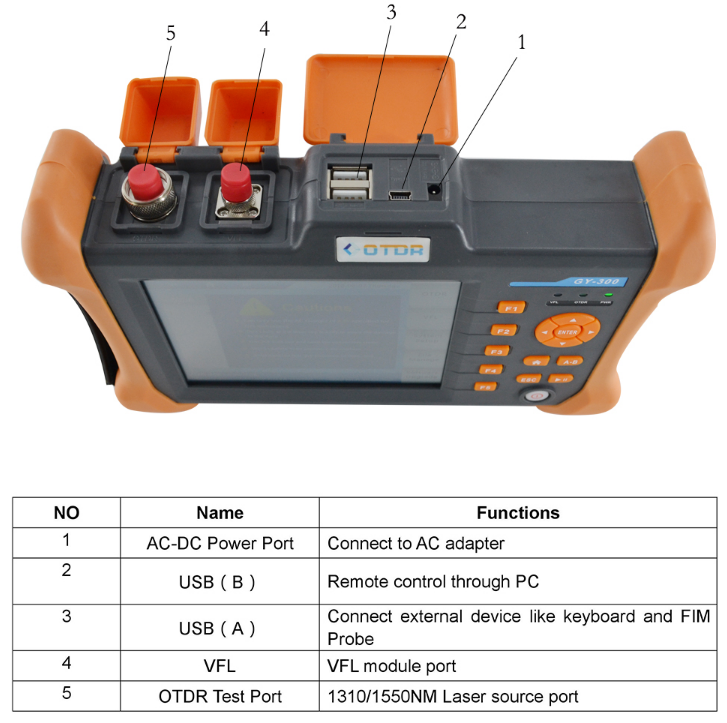

Interface	3 USB ports(Type A×2,Type B×1)
Display	5.6 inch TFT-LCD, Touching screen
Battery	7.4V/4.4Ah lithium battery , support 8 hours continuous working
Working conditions	Working Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃;Humitity :≤95%(non-dew)
Dimensions/Weight	253×168×73.5mm / 1.5kg(include battery)

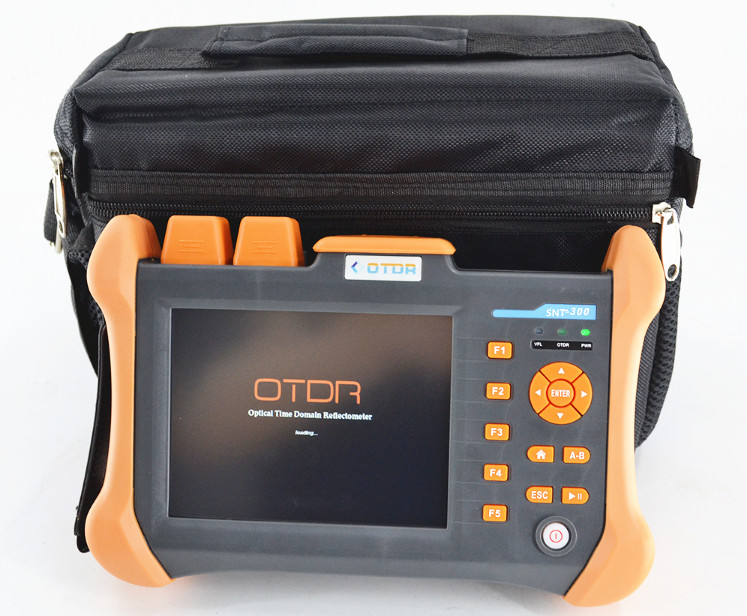

Packing list	Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton
