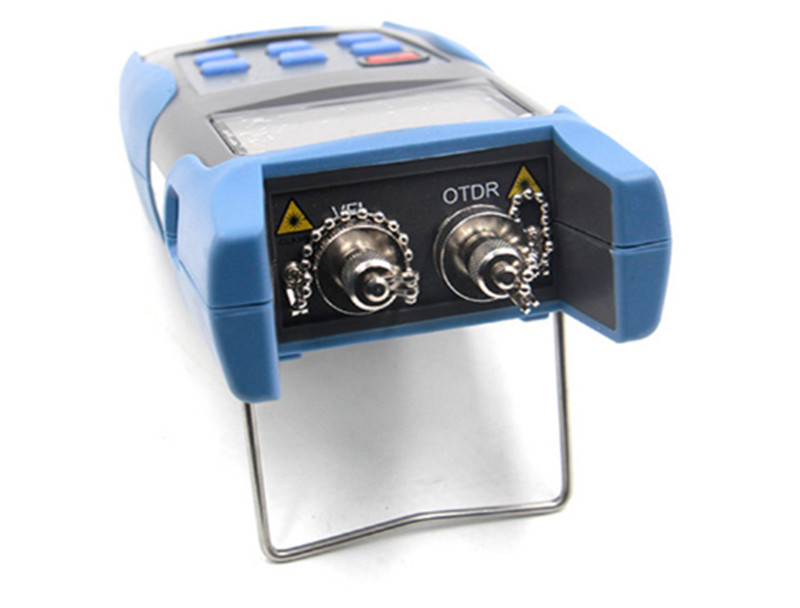

SNT-JW-3304A Fiber Ranger is newly designed fiber optic tester, it aims at fiber fiber network installation,fiber network engineering acceptance and fiber network maintenance. It can detect fiber fault location more accurate and quick, and designed for field use.JW 3304A fiber ranger is an economical tester instead of OTDR in the test and maintenance of fiber network.
* Easy to identify the faults location
* Analysis reflection events and attenuation events automatically
* Build-in visual fault locator function
* Automatic Pulse Width Control design to ensure a convenient operation.
* Up to 2500 measurement results can be stored in the unit.
| Model | SNT-JW-3304A | |
| Operating Wavelength | 1550nm(1310nm Optional) | |
| Fiber Type | 9/125um SM Fiber | |
| Optical Connector Type | FC/PC | |
| Detector Type | InGaAs | |
| Peak Power of laser | ≥60mW | |
| Max. Displaying Distance | Reflection Event | 60km (≥1dB) |
| Non-reflection Event | 20km (≥2.5dB) | |
| Measurement Unit | m | |
| Reflection Event Dead Zone | 15m | |
| Distance Accuracy(Reflection Event) | ±(2m+2*10(-4)*Distance) | |
| Wavelength of VFL Option | 650nm | |
| Output Power of VFL Option | >=1mW | |
| Power Supply | Alkaline Battery (3pcs AA 4.5V Batteries) | |
| Battery Operating Time | ≥5000 measurements | |
| Working Temperature | -5~40℃ | |
| Storage Temperature | -10~60℃ | |
| Humidity | 0~85%(Non-condensation) | |
| Dimensions | 190*100*50mm | |
| Weight(g) | 450 | |
