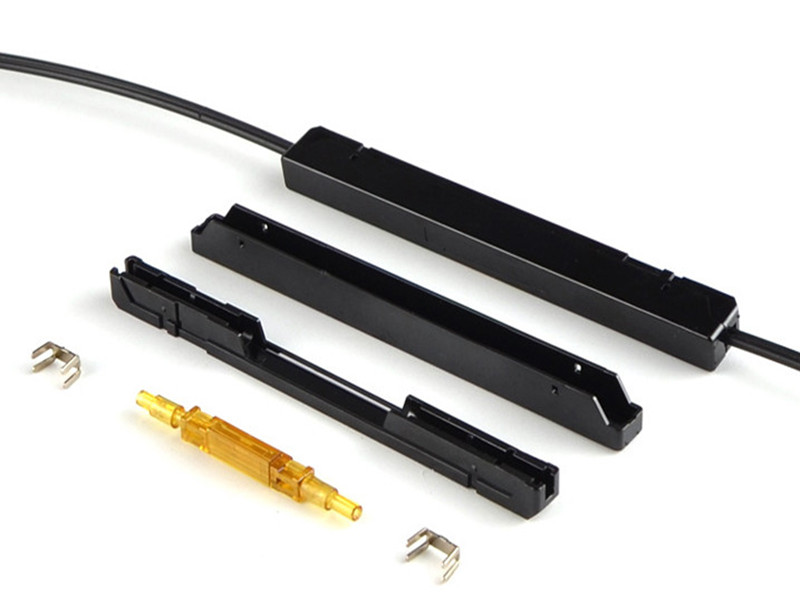

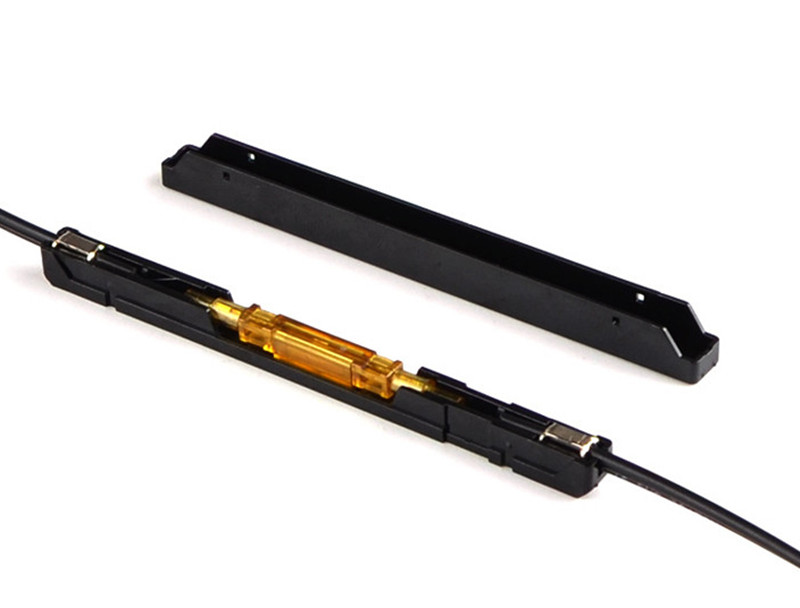

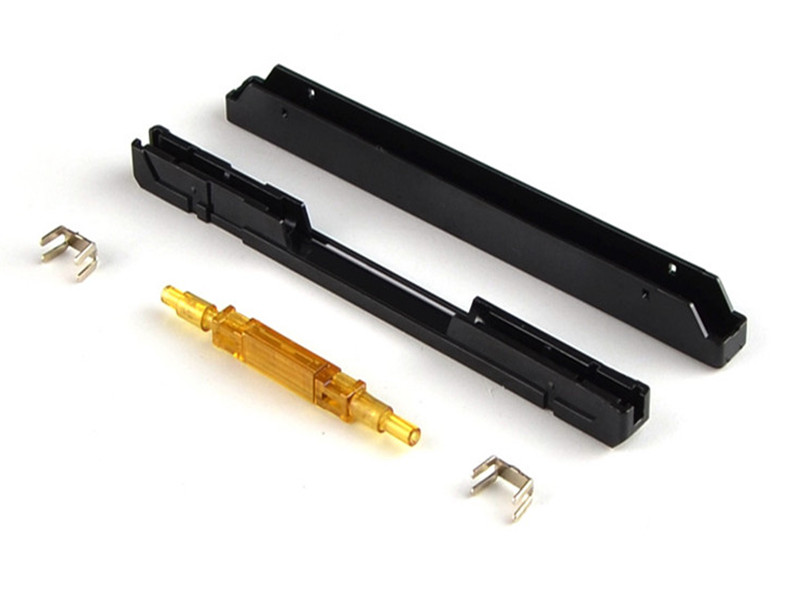

Optical Mechanical Splicer

Description

The Fiber Optic Mechanical Splicer is used for fast splice and has good performance. Precise fiber guiding structure lead to low insertion. The tensile strength is more than 454g, and have very good thermal stability. The unique design make the fiber inserting smoothly. The splicer could be used for splicing any single mode and multimode fiber. It can be applied for FTTH, optical fiber cable fast-repair.

The key tech of optic fiber splice is pre-installed fiber and inserted fiber connect by matching gel in the V-shaped groove.

Our fiber optic mechanical splice is special designed glass V-shaped groove, the material is as same as optical fiber, it could keep fiber won't be changed by the varies temperature, to minimize the fiber insertion loss. Meanwhile, the optic fiber splice is designed of dust & water proof, it is better suited

for FTTH of the complex environment with wet and dust.

Feature

Fast splice without fusion machine, but could achieve same fusion splicing effect.

Low insertion loss

High tensile strength

Good thermal and environmental stability

Good design for simple assemble

Field installable, high reliability.

Compact size, lightweight, quick and easy operation.

Apply to splice the drop cable and breakpoint resume.

Reusability >50 times (before cover the housing).

Specification

Scope of application: 2x3mm drop cable

Fiber diameter: 250 um or 900 um

Fiber mode: SM&MM

Operation time: <30s (No fiber cut)

Life time: 30 years

Insertion loss: ≤0.3dB (Typical: 0.1dB)

Return loss: ≥45dB

Tensile strength: ≥454g

Fastening strength of bare fiber: ≥3N

Fastening strength of drop fiber: ≥50N

Operating temperature: -40°C to 80°C

Temperature influence: IL change ≤0.5dB

Vibration influence: IL change ≤0.2dB

Water immersion: Yes

Water immersion influence: IL change ≤0.2dB

Dimension: 7.1×8.1×90.4mm (W*H*L)
