Description:

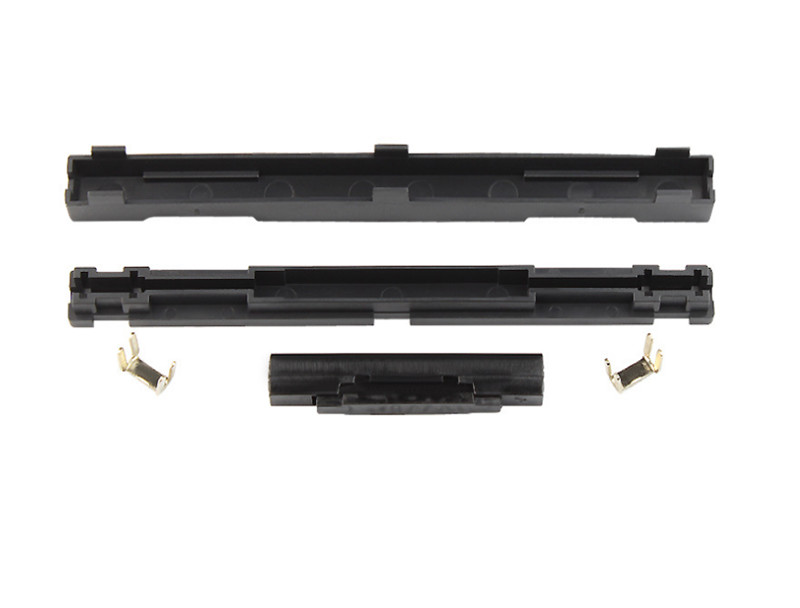

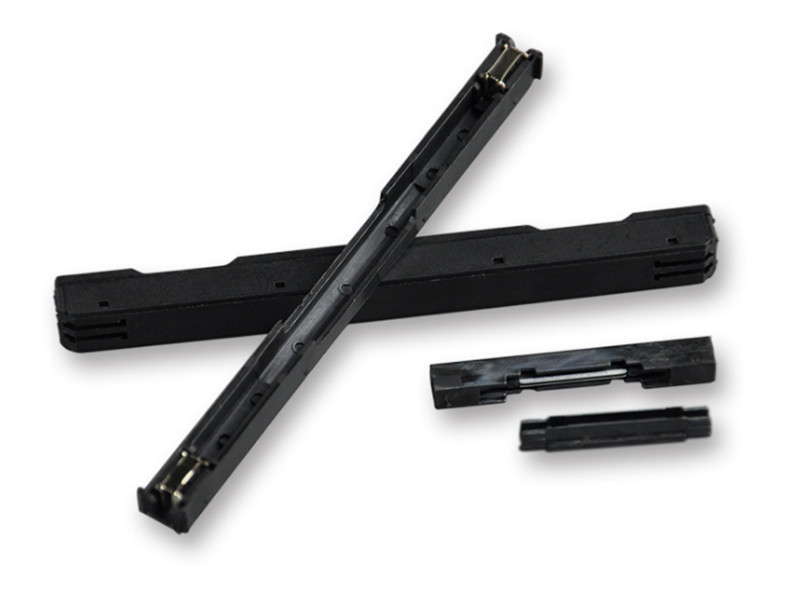

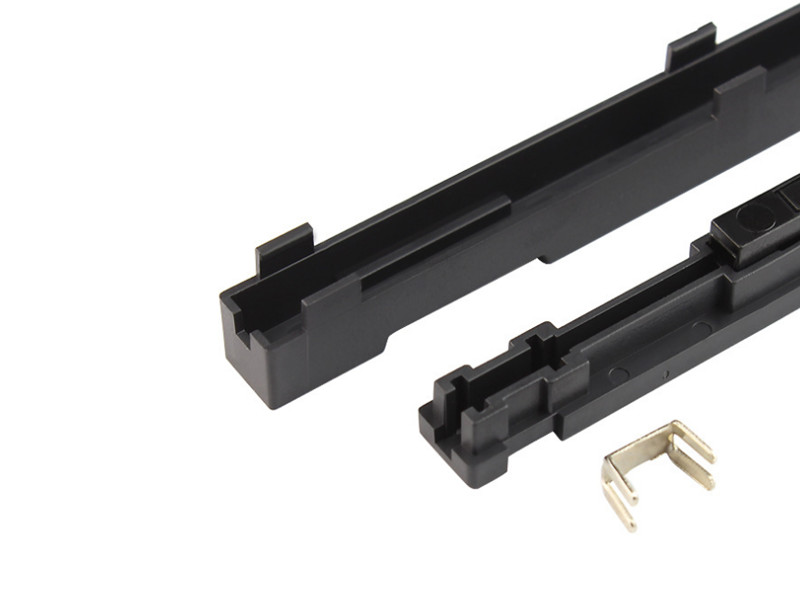

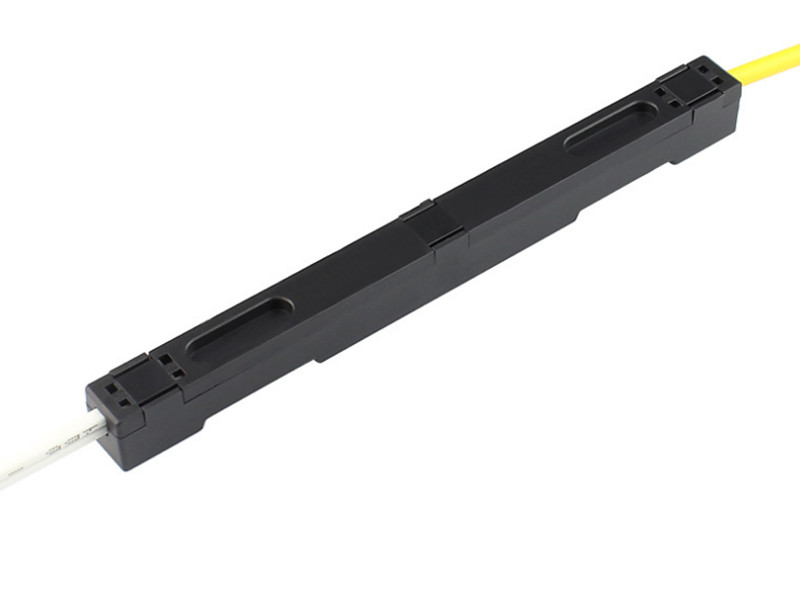

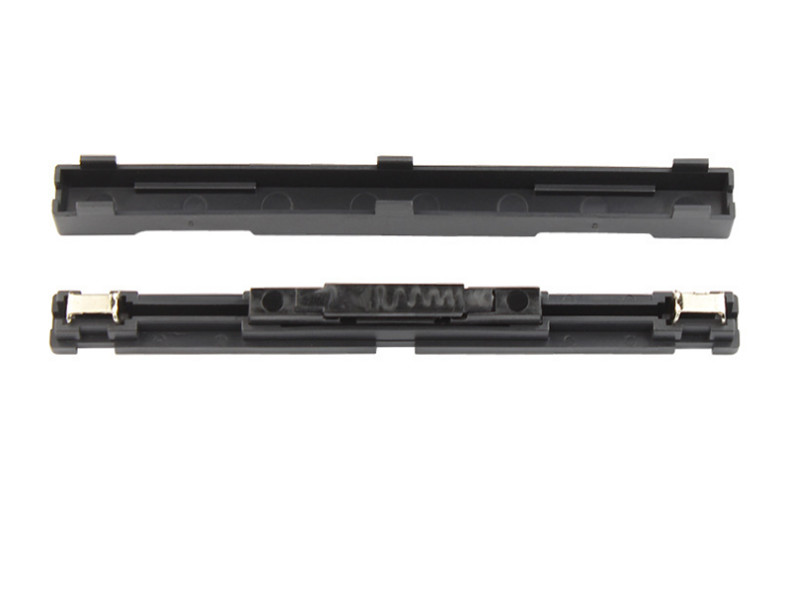

Mechanical Field-Mountable Fiber Optic Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove.. Also, transparent design of the side cover which allows visual inspection.
Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
Applications:
Fast Ethernet,Data Communication LAN and WAN
High speed Enterprise servers
Multiplexers,switches and routers
Optical Access and ATM Networks Equipment
Optical Transport and Telecommunications,FTTH,FTTD,FTTX
Switching Equipment
Specification:
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≤ -40dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tighten Strength of Naked Fiber | >5 N |
| Tensile Strength | >50 N |
| Teperature | -40~+85℃ |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
