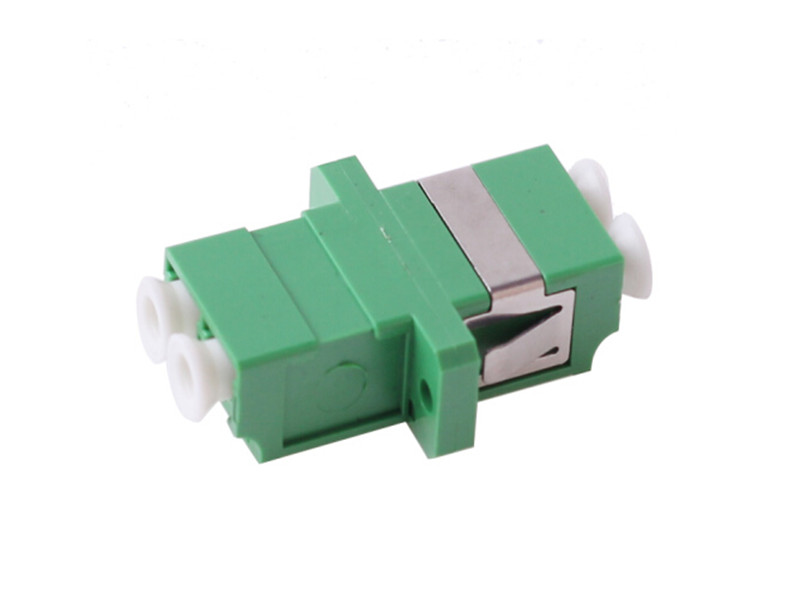

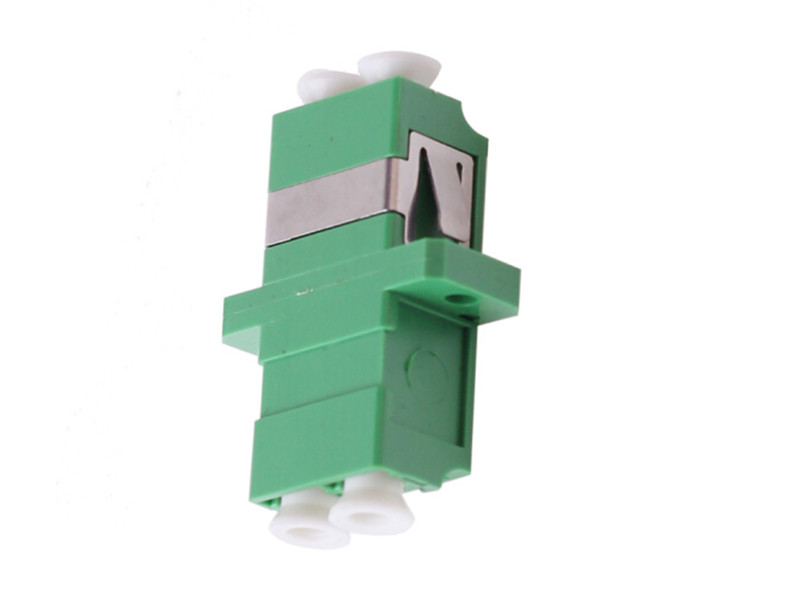

Product Type : SM DX LC/APC
Product Code : SNTAD-SM-DX-LCA
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.
Key Features
1. Low insertional loss and back reflection loss
2. High prcision alignment
3. Nickel plated brass body
4. Use in Single-mode or Multimode applications
5 .Choice of housing material and sleeve material
6. ISO9001:2008,ROHS compliance
Product Applications
1. CATV
2. Telecommunication networks
3. Test equipment
4. Metro
5. Local Area Networks(LANs)
6. Data processing networks
Product Specification
| Parameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
