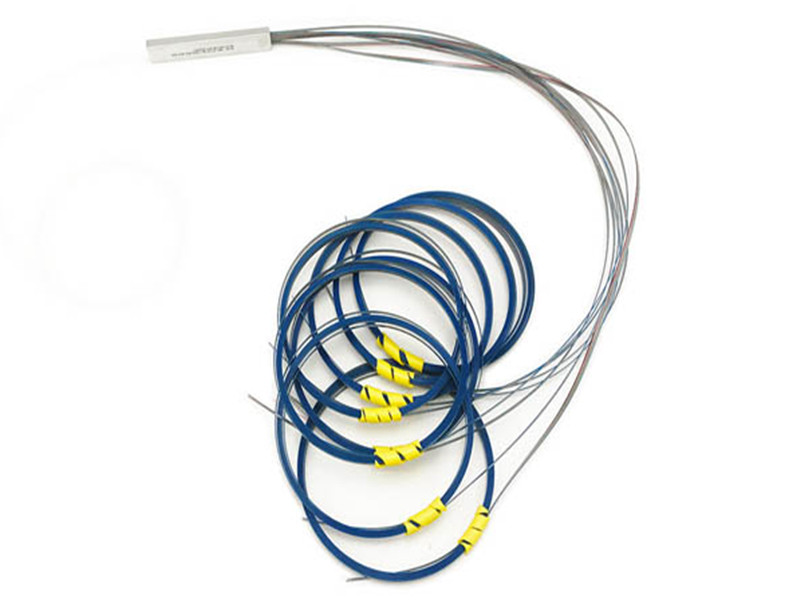

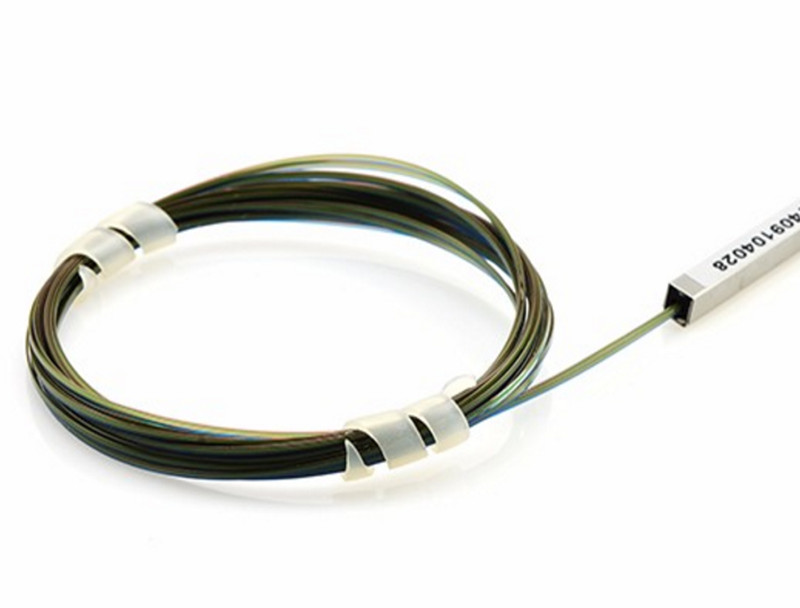

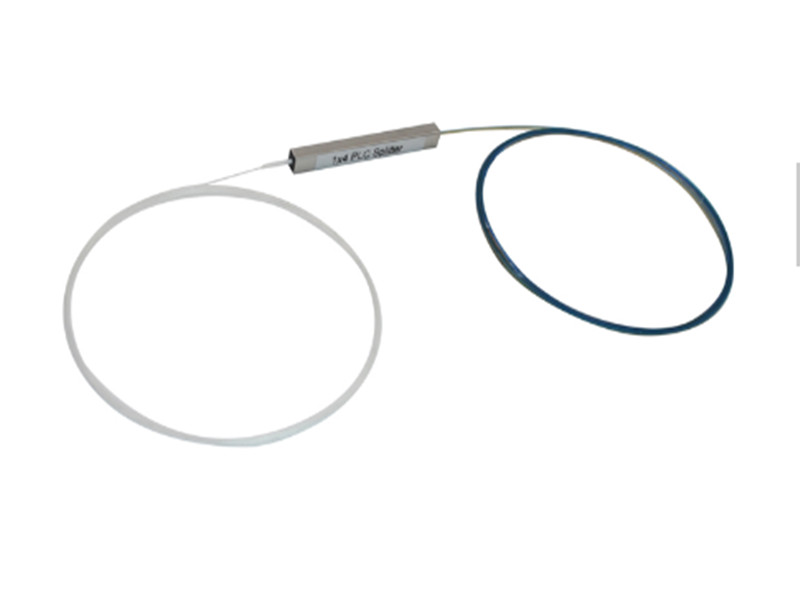

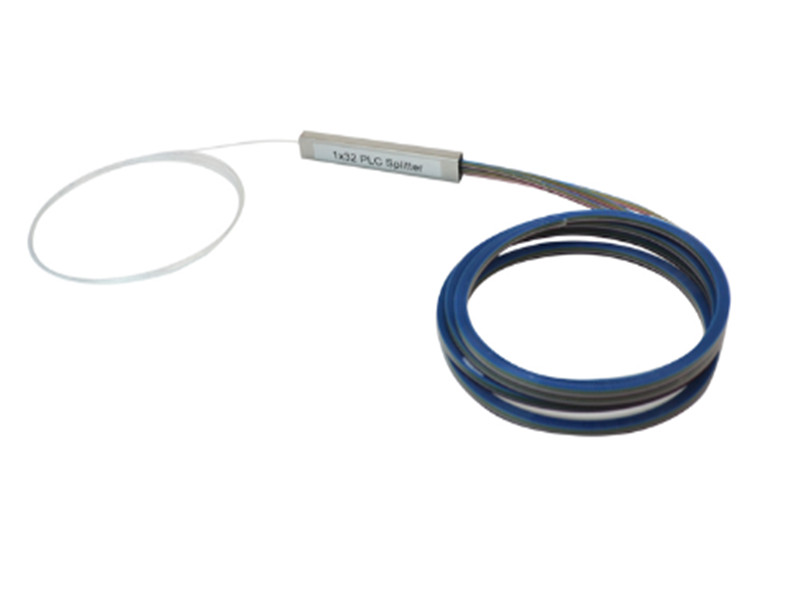

Product Name : PLC Splitter Bare Fiber Type
Product Code : SNTPLC-BF-1*16
Fiber Optic PLC Splitter
The fiber optic splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Parameter | Specification | ||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
Fiber Type | 9/125 um SMF-28e or custom on request | ||||||
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Typical | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
(P/S) Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/20.8 | |
Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
Polarization Dependent Loss (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.5 |
Directivity (dB) | Min | 55 | |||||
Return Loss (dB) | Min | UPC:50 APC:55 | |||||
Operating Temperature(℃) | -40~85 | ||||||
Storage Temperature(℃) | -40~85 | ||||||
Test Method | - Vibration: IEC 61300-2-1 - Temperature cycling: IEC 61300-2-22 - Water Immersion: Drench in water at 35○C to 43○C ,pH 5.5% in 5 days. Loss 0.2dB - Salt spray: pray salt water with a concentration 5% NaCl Maintain temperature at 43○C to 65○C Loss 0.2dB |
Parameter | Specification | ||||||
Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
Fiber Type | 9/125 um SMF-28e or custom on request | ||||||
Operating Wavelength (nm) | 1260~1650 | ||||||
Insertion Loss (dB) | Typical | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
(P/S) Max | 4.1/4.3 | 7.4/7.6 | 10.8/11.0 | 14.3/14.5 | 17.3/17.5 | 20.7/21.5 | |
Loss Uniformity (dB) | Max | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 |
Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
Directivity (dB) | Min | 55 | |||||
Return Loss (dB) | Min | UPC:50 APC:55 | |||||
Operating Temperature(℃) | -40~85 | ||||||
Storage Temperature(℃) | -40~85 | ||||||
